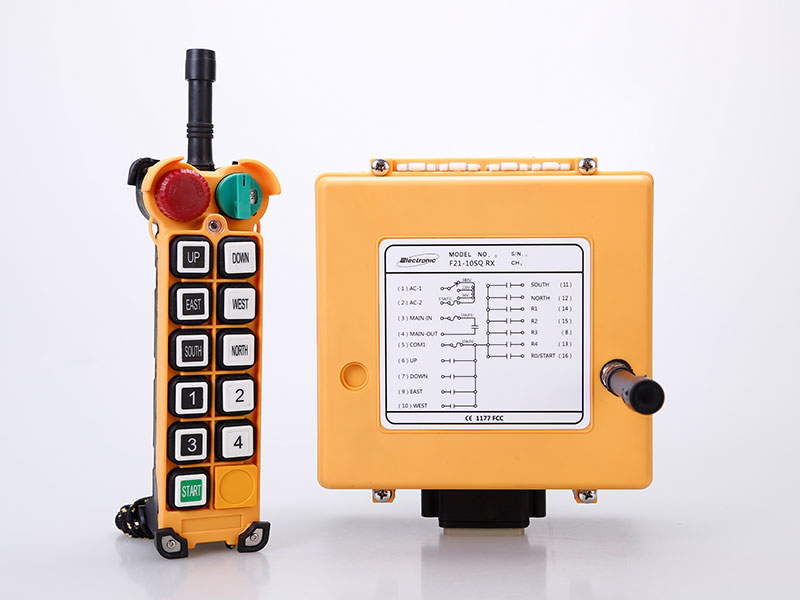

PEF21-10SQ

  • Control distance:up to 100m
  • Certificate: CE, FCC ISO9001：2008
  • Operation frequency:310.00~330MHz
  • Buttons :10 Single Speed
  • Working temperature :-35℃~+80℃
  • Material :Glass Fiber-Reinforced Nylon-6

Introduction

Description
  • Water-proof, IP 65, can be used inner or outside.
  • Glass fiber and engineering-plastics make the cover strong, avoid damage cause by high falling or gravity roller.
  • Control distance can reach to 100m
  • Wide receiver voltage can meet different requirement.
  • Key safety magnet, another guarantee about the safety. Free transmitter protecting cover available.
  • 6 Single speed push buttons +one EMGS button+ one START button+ one STOP button + one SWITCH
  • Control points up to 6
  • With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
  • With the Rotate key switch to guarantee the safety.
  • Set the internal functions by computer interface
  • Up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc
    • Model Operation Button Button Type Transmitter Receiver
    Emergency Stop
    PEF21-10SQ 10 Single Speed Rotary key Mushroom
    Transmitter
    Open Keys    		 Receiver EMS Receiver Control Points Receiver
    interface
    Start Yes 10 Aviation
