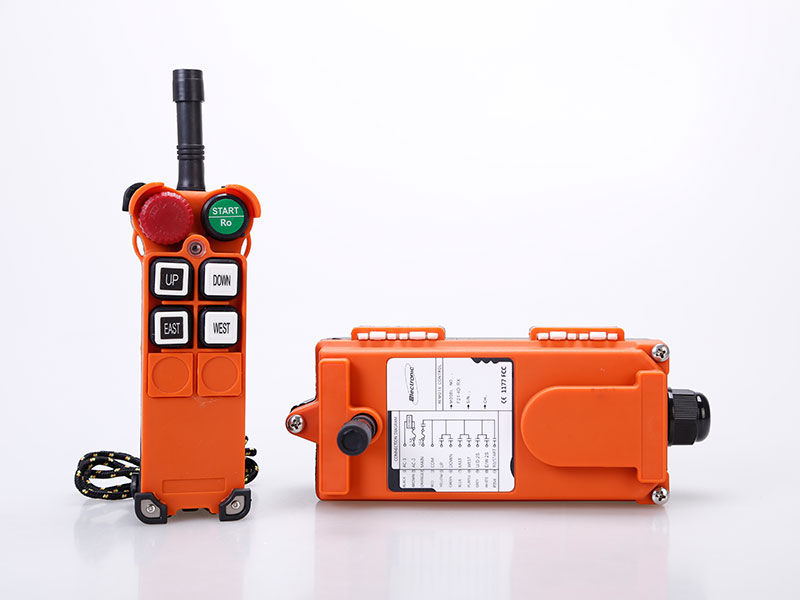

PEF21-4D

  • Control distance:up to 100m
  • Certificate: CE, FCC ISO9001：2008
  • Material :Glass Fiber-Reinforced Nylon-6
  • Buttons :4 double Speed,1 START Button,1 Mushroom Button
  • Relays:6 Relays control functions,1 relay control EMS and 1 relay reserve
  • Working temperature :-35 ℃ ~ +80 ℃
  • Operation frequency:310.0325-331.165MHz or 433Mhz

Introduction

Description
  • 4 double speed buttons + START button+ STOP button
  • Control points up to 6
  • With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
  • Set the internal functions by computer interface
  • Up/down, east/west, south/ north push button can be set interlock or not.
    • Model Operation Button Button Type Transmitter Receiver
    Emergency Stop
    PEF21-4D 4 Double Speed - Mushroom
    Transmitter
    Open Keys    		 Receiver EMS Receiver Control Points Receiver
    interface
    Start Yes 6 Cable
