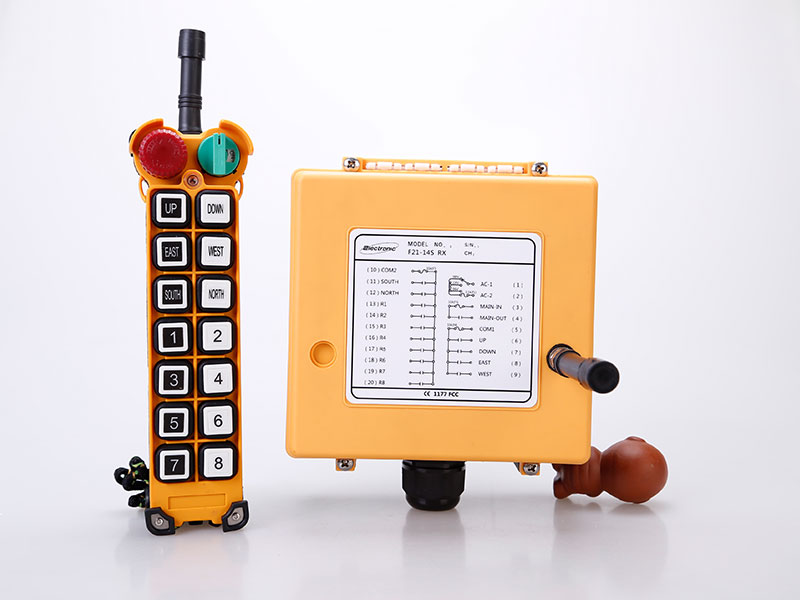

PEF21-14S

  • Control distance:up to 100m
  • Certificate: CE, FCC ISO9001：2008
  • Material : Glass Fiber-Reinforced Nylon-6
  • Buttons :14 Single Speed,1 mushroom,1Rotary switch
  • Relays:14 Relays control functions,1 relay control EMS
  • Working temperature :-35℃~+80℃
  • Operation frequency:310.0325-331.165 MHz

Introduction

Description
  • 14 Single speed push button and one EMS button + one START button
  • Control point up to 14
  • With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
  • With the Rotate key switch to guarantee the safety.
  • Set the internal functions by computer interface
  • ALL push buttons can be set jump strokes, ordinary, mutual inhibition or not.
    • Model Operation Button Button Type Transmitter Receiver
    Emergency Stop
    PEF21-14S 20 Single Speed Rotary key Mushroom
    Transmitter
    Open Keys    		 Receiver EMS Receiver Control Points Receiver
    interface
    Any button Yes 14 Cable
