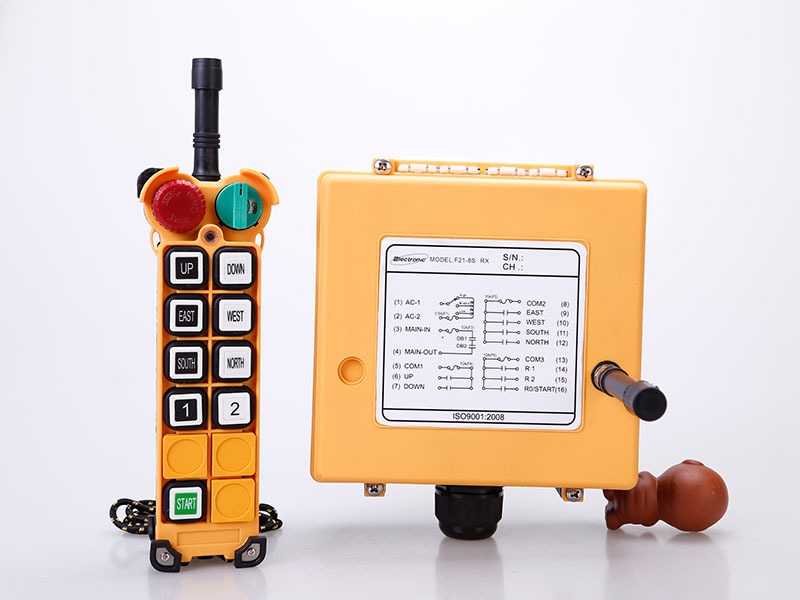

PEF21-8S

  • Control distance:up to 100m
  • Certificate: CE, FCC ISO9001:2008
  • Material :Glass Fiber-Reinforced Nylon-6
  • Buttons :8 Single Speed
  • Working temperature :-35 ℃ ~ +80 ℃
  • Operation frequency:310.0325-331.165 MHz & 433Mhz

Introduction

Description
  • 8 single speed push button + one EMGS button + one START button
  • Total control motions up to 8.
  • With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
  • With the Rotate key switch to guarantee the safety.
  • Set the internal functions by computer interface
  • Up/down, east/west, south/ north push button can be set mutual inhibition or not.
  • Power button can be set start, speed up, jump strokes, ordinary etc.
  • Spare 1-2 key can be set ordinary, interlock, jump strokes, switch etc.
  • Model Operation Button Button Type Transmitter Receiver
    Emergency Stop
    PEF21-8S 8 Single Speed Rotary key Mushroom
    Transmitter
    Open Keys
    Receiver EMS Receiver Control Points Receiver
    interface
    Start Yes 9 Cable
