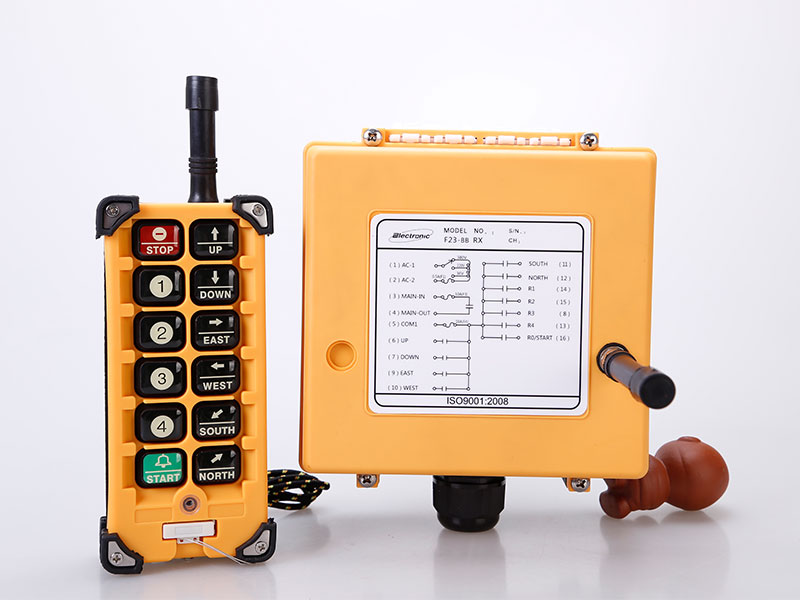

PEF23-BB

  • Control distance:up to 100m
  • Certificate: CE, FCC ISO9001：2008
  • Operation frequency:310.00~330MHz
  • Buttons :10 Single Speed,1 START,1 STOP
  • 10 Relays control functions,1 relay control EMS and 1 relay reserve
  • Working temperature :-35℃~+80℃
  • Material :Glass Fiber-Reinforced Nylon-6

Introduction

Description
  • The control distance can reach 100m
  • 10 push buttons, include ON/OFF, UP/DOWN, EAST/WEST, SOUNTH/NORTH, 1/2, 3/4
  • Total 10 control motions
  • Earthquake-reduction design, to avoid damage from sudden shake and falling.
  • For emergency circumstances, you can take out the magnet key to cut down the power on a moment.
  • Water-proof, IP 65, can be used inner or outside.
  • Free transmitter protecting cover available.
    • Model Operation Button Button Type Transmitter Receiver
    Emergency Stop
    PEF23-BB 10 Single Speed Magnetic Key Push Button
    Transmitter
    Open Keys    		 Receiver EMS Receiver Control Points Receiver
    interface
    Any Button Yes 10 Cable
