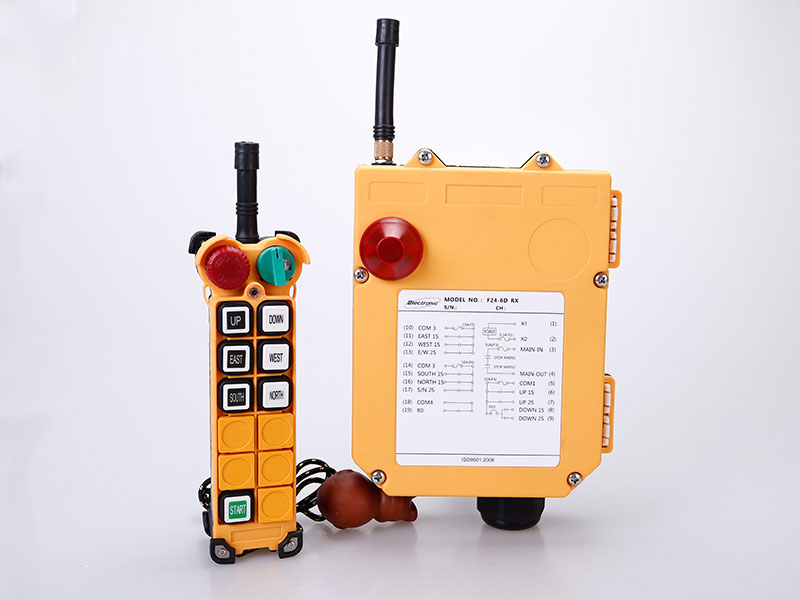

PEF24-6D

  • Control distance:up to 100m
  • Certificate: CE, FCC ISO9001：2008
  • Operation frequency:310.00~330MHz
  • Buttons :6 Double Speed,1 START,1 mushroom,1 Rottary switch
  • Relays: 10 Relays control functions,1 relay control EMS and 1 relay reserve
  • Working temperature :-35℃~+80℃
  • Material :Glass Fiber-Reinforced Nylon-6

Introduction

Description
  • 6 double speed push button +START button+ one EMGS button + one SWITCH
  • Control point up to 10
  • With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
  • With the Rotary key switch to guarantee the safety.
  • Set the internal functions by computer interface
  • 6 push button can be set mutual inhibition or not .
  • Up ,Down ,East ,West etc. can be set start ,close,speed up,jump strokes,ordinary etc.
    • Model Operation Button Button Type Transmitter Receiver
    Emergency Stop
    PEF24-6D 6 Double Rotary key Mushroom
    Transmitter
    Open Keys    		 Receiver EMS Receiver Control Points Receiver
    interface
    Any Button Yes 11 Cable
